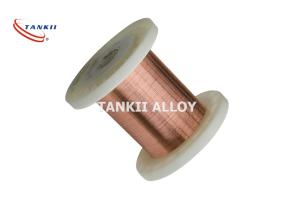

Cuprothal 5 Copper Nickel Alloy Wire CuNi2 Constantan Wire

Name: Cuprothal 5 Copper Nickel Alloy Wire CuNi2 Constantan Wire
Brand: TANKII
Price: 1 USD

China Cuprothal 5 Copper Nickel Alloy Wire CuNi2 Constantan Wire wholesale

Brand Name : TANKII

Model Number : CuNi2

Certification : ISO9001

Place of Origin : Shanghai

MOQ : 20kg

Price : negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 200+ton+per month

Delivery Time : 8-20 days

Packaging Details : on spools,put in boxes and packed on wooden pallets if heavy

color : copper color

nickel content : 2%

resistivity : 0.05

density : 8.9

Contact Now

CuNi2/Cuprothal 5/Copper Nickel Alloy Wire

Appicaton:
Low-voltage circuit breaker, thermal overload relay, electrical heating cable, electrical heating mats, snow melting cable and mats, ceiling radiant heating mats, Floor heating mats & Cables, Freeze protection cables, electrical heat tracers, PTFE heating cables, hose heaters, and other low-voltage electrical product

Characteristic	Resistivity ( 200C μΩ.m)	Max.working Temperature ( 0C)	Tensile Strength (Mpa)	Melting point (0C)	Density ( g/cm3)	TCR x10-6/ 0C (20~600 0C)	EMF vs Cu (μV/ 0C) (0~100 0C)
Alloy Nomenclature
NC005(CuNi2)	0.05	200	≥220	1090	8.9	<120	-12

Copper Nickel Alloy- CuNi2
Chemical Content, %

Ni	Mn	Fe	Si	Cu	Other	ROHS Directive
						Cd	Pb	Hg	Cr
2	-	-	-	Bal	-	ND	ND	ND	ND

Mechanical Properties

Max Continuous Service Temp	200ºC
Resisivity at 20ºC	0.05±10%ohm mm2/m
Density	8.9 g/cm3
Thermal Conductivity	<120
Melting Point	1090ºC
Tensile Strength,N/mm2 Annealed,Soft	140~310 Mpa
Tensile Strength,N/mm2 Cold Rolled	280~620 Mpa
Elongation(anneal)	25%(min)
Elongation(cold rolled)	2%(min)
EMF vs Cu, μV/ºC (0~100ºC)	-12
Micrographic Structure	austenite
Magnetic Property	Non
