CuNi Copper nickel heating resistance wire 180 Alloy(CuNi23)

Name: CuNi Copper nickel heating resistance wire 180 AlloyCuNi23
Brand: TANKII
Price: 1 USD

China CuNi Copper nickel heating resistance wire 180 Alloy(CuNi23) wholesale

Brand Name : TANKII

Model Number : CuNi23

Certification : ISO9001: 2008

Place of Origin : Shanghai, China

MOQ : 20kg

Price : Negotiation

Payment Terms : L/C, T/T, Western Union, Paypal

Supply Ability : 300+TON+MONTH

Delivery Time : 15-28DAYS

Packaging Details : Spool, carton, plywod case with plastic film as clients required

material : Constantan/ Manganin

Wire Chemical : Cu Ni/ Cu Mn

type : Round Insulated Wire

Insulation Material : Polyesterimide, Polyester

application : Electric Instrument, Electric Part Coil and so on

class : 130,155,180,200,220

Contact Now

CuNi 23 /nickel alloy 30/Cuprothal 30

Copper Nickel 23 or CuNi23Mn is a copper nickel alloy with the addition of Manganese to produce an alloy with a relatively low resistivity but high resistance to oxidation and chemical corrosion. Maximum working temperature is 500 °C. Applications include heating cords and mats

Product Description
CuNi23Mn low resistance heating alloy is widely used in low-voltage circuit breaker, thermal overload relay, and other low-voltage electrical product. It is one of the key materials of the low-voltage electrical products. The materials produced by our company have the characteristics of good resistance consistency and superior stability. We can supply all kinds of round wire, flat and sheet materials.
Chemical Content, %

Ni	Mn	Fe	Si	Cu	Other	ROHS Directive
						Cd	Pb	Hg	Cr
23	0.5	-	-	Bal	-	ND	ND	ND	ND

Mechanical Properties

Max Continuous Service Temp	250ºC
Resisivity at 20ºC	0.35%ohm mm2/m
Density	8.9 g/cm3
Thermal Conductivity	16(Max)
Melting Point	115ºC
Tensile Strength,N/mm2 Annealed,Soft	270~420 Mpa
Tensile Strength,N/mm2 Cold Rolled	350~840 Mpa
Elongation(anneal)	25% (Max)
Elongation(cold rolled)	2% (Max)
EMF vs Cu, μV/ºC (0~100ºC)	-25
Micrographic Structure	austenite
Magnetic Property	Non

CuNi23Mn Tradenames:
Alloy 180, CuNi 180, 180 Alloy, MWS-180, Cuprothal 180, Midohm, HAI-180, Cu-Ni 23, Alloy 380, Nickel alloy 180
Resistance Alloy 180 - CuNi23Mn Sizes / Temper Capabilities
Condition: Bright, Annealed, Soft
Wire diameter 0.02mm-1.0mm packing in spool, big than 1.0mm packing in coil
Rod, Bar diameter 1mm-30mm
Strip: Thickness 0.01mm-7mm, Width 1mm-280mm
Enameled condition is available

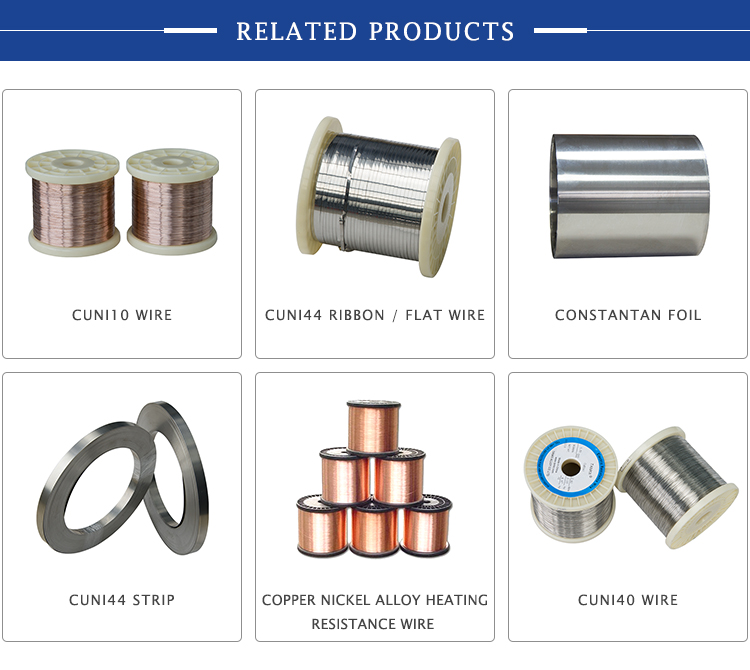

Related products

CuNi Copper nickel heating resistance wire 180 Alloy(CuNi23)

PropertiesGrade		CuNi1	CuNi2	CuNi6	CuNi8	CuMn3	CuNi10
Main Chemical Composition	Ni	1	2	6	8	_	10
	Mn	_	_	_	_	3	_
	Cu	Bal	Bal	Bal	Bal	Bal	Bal
Max Continuous Service Temperature(oC)		200	200	200	250	200	250
Resisivity at 20oC (Ωmm2/m)		0.03	0.05	0.10	0.12	0.12	0.15
Density(g/cm3)		8.9	8.9	8.9	8.9	8.8	8.9
Thermal Conductivity(α×10-6/oC)		<100	<120	<60	<57	<38	<50
Tensile Strength(Mpa)		≥210	≥220	≥250	≥270	≥290	≥290
EMF vs Cu(μV/oC)(0~100oC)		-8	-12	-12	-22	_	-25
Approximate Melting Point( oC)		1085	1090	1095	1097	1050	1100
Micrographic Structure		austenite	austenite	austenite	austenite	austenite	austenite
Magnetic Property		non	non	non	non	non	non

PropertiesGrade		CuNi14	CuNi19	CuNi23	CuNi30	CuNi34	CuNi44
Main Chemical Composition	Ni	14	19	23	30	34	44
	Mn	0.3	0.5	0.5	1.0	1.0	1.0
	Cu	Bal	Bal	Bal	Bal	Bal	Bal
Max Continuous Service Temperature(oC)		300	300	300	350	350	400
Resisivity at 20oC (Ωmm2/m)		0.20	0.25	0.30	0.35	0.40	0.49
Density(g/cm3)		8.9	8.9	8.9	8.9	8.9	8.9
Thermal Conductivity(α×10-6/oC)		<30	<25	<16	<10	<0	<-6
Tensile Strength(Mpa)		≥310	≥340	≥350	≥400	≥400	≥420
EMF vs Cu(μV/oC)(0~100oC)		-28	-32	-34	-37	-39	-43
Approximate Melting Point( oC)		1115	1135	1150	1170	1180	1280
Micrographic Structure		austenite	austenite	austenite	austenite	austenite	austenite
Magnetic Property		non	non	non	non	non	non

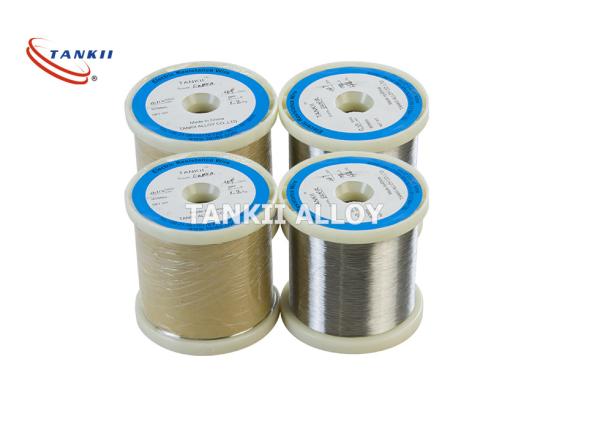

CuNi Copper nickel heating resistance wire 180 Alloy(CuNi23) Images
